Year 2025 / Volume 117 / Number 5
Review
Estimation of liver fibrosis using elastography in cholestatic diseases: systematic review and meta-analysis

265-273

DOI: 10.17235/reed.2023.9254/2022

Natalia Marcos Carrasco, Alejandro López Jerez, Elena Garrido, Miguel García González,

Abstract

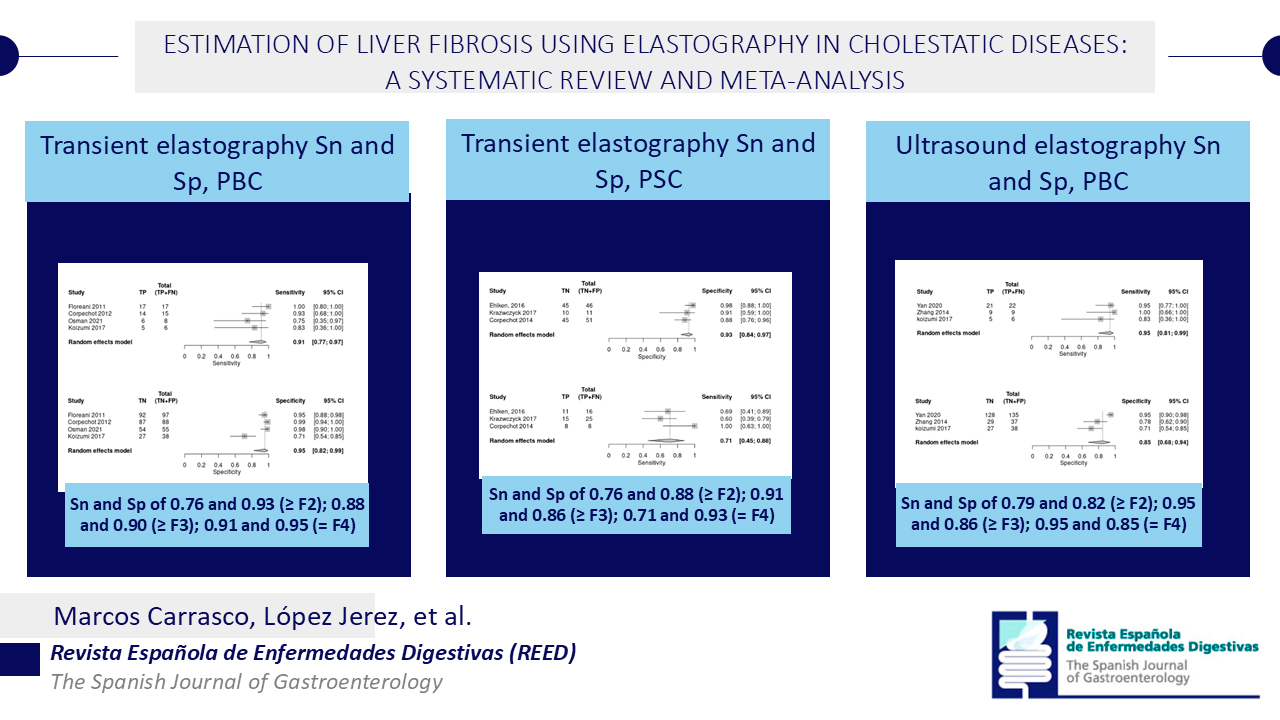

Introduction: staging fibrosis extent in liver disease is highly relevant for appropriate management. Liver biopsy remains the reference standard for assessment, but noninvasive methods such as elastography are becoming increasingly accurate and relevant. However, evidence regarding elastography in cholestatic diseases is lower than in other etiologies. Methods: we searched MEDLINE, EMBASE and Web of Science for publications on the diagnostic accuracy of transient elastography and sonoelastography in cholestatic diseases (PBC and PSC) using biopsy as the reference standard. A systematic review and meta-analysis of the results was then carried out. Results: a total of 13 studies were included. Using transient elastography in PBC sensitivity and specificity were estimated to be 0.76 and 0.93; 0.88 and 0.9; and 0.91 and 0.95 for ≥ F2, ≥ F3 and = F4, respectively. For sonoelastography in PBC sensitivity and specificity estimates were 0.79 and 0.82; 0.95 and 0.86; and 0.94 and 0.85 for ≥ F2, ≥ F3 y = F4, respectively. In PSC, transient elastography had a sensivity and specificity of 0.76 and 0.88; 0.91 and 0.86; and 0.71 and 0.93 for ≥ F2, ≥ F3 and = F4, respectively. Conclusion: elastography has adequate diagnostic accuracy in the assessment of fibrosis stages in cholestatic liver diseases.
New comment
Comments
No comments for this article
References
1. Srinivasa BA, Wells ML, Teytelboym OM,et al. Elastography in Chronic Liver Disease: Modalities, Techniques, Limitations, and Future Directions. Radiographics. 2016 Nov-Dec;36(7):1987-2006
2. Gilmore IT, Burroughs A, Murray-Lyon IM, et al. Indications, methods, and outcomes of percutaneous liver biopsy in England and Wales: an audit by the British Society of Gastroenterology and the Royal College of Physicians of London. Gut. 1995 Mar;36(3):437-41
3. Cadranel JF, Rufat P, Degos F. Practices of liver biopsy in France: results of a prospective nationwide survey. For the Group of Epidemiology of the French Association for the Study of the Liver (AFEF). Hepatology. 2000 Sep;32(3):477-81.
4. Regev A, Berho M, Jeffers LJ, et al. Sampling error and intraobserver variation in liver biopsy in patients with chronic HCV infection. Am J Gastroenterol. 2002 Oct;97(10):2614-8.
5. Rousselet MC, Michalak S, Dupré F, et al. Hepatitis Network 49. Sources of variability in histological scoring of chronic viral hepatitis. Hepatology. 2005 Feb;41(2):257-64.
6. European Association for Study of Liver; Asociacion Latinoamericana para el Estudio del Higado. EASL-ALEH Clinical Practice Guidelines: Non-invasive tests for evaluation of liver disease severity and prognosis. J Hepatol. 2015 Jul;63(1):237-64.
7. Dietrich CF, Bamber J, Berzigotti A, et al. EFSUMB Guidelines and Recommendations on the Clinical Use of Liver Ultrasound Elastography, Update 2017 (Long Version). Ultraschall Med. 2017 Aug;38(4):e16-e47.
8. European Association for the Study of the Liver. EASL Clinical Practice Guidelines: The diagnosis and management of patients with primary biliary cholangitis. J Hepatol. 2017 Jul;67(1):145-172.
9. European Association for the Study of the Liver. EASL Clinical Practice Guidelines: Autoimmune hepatitis. J Hepatol. 2015 Oct;63(4):971-1004.
10. Chu H, Cole SR. Bivariate meta-analysis of sensitivity and specificity with sparse data: a generalized linear mixed model approach. J Clin Epidemiol. 2006 Dec;59(12):1331-2; author reply 1332-3.
11. Higgins JP, Thompson SG. Quantifying heterogeneity in a meta-analysis. Stat Med. 2002 Jun 15;21(11):1539-58.
12. Milovanović T, Copertino A, Boričić A et al. Transient elastography for noninvasive assessment of liver fibrosis in patients with primary biliary cirrhosis. Vojnosanitetski pregled. 2018; 75 (4): 374-379.
13. Corpechot C, Carrat F, Poujol-Robert A, et al. Noninvasive elastography-based assessment of liver fibrosis progression and prognosis in primary biliary cirrhosis. Hepatology. 2012 Jul;56(1):198-208.
14. Osman KT, Maselli DB, Idilman IS, et al. Liver Stiffness Measured by Either Magnetic Resonance or Transient Elastography Is Associated With Liver Fibrosis and Is an Independent Predictor of Outcomes Among Patients With Primary Biliary Cholangitis. J Clin Gastroenterol. 2021 May-Jun 01;55(5):449-457.
15. Floreani A, Cazzagon N, Martines D, et al. Performance and utility of transient elastography and noninvasive markers of liver fibrosis in primary biliary cirrhosis. Dig Liver Dis. 2011 Nov;43(11):887-92
16. Koizumi Y, Hirooka M, Abe M, et al Comparison between real-time tissue elastography and vibration-controlled transient elastography for the assessment of liver fibrosis and disease progression in patients with primary biliary cholangitis. Hepatol Res. 2017 Nov;47(12):1252-1259.
17. Gómez-Dominguez E, Mendoza J, García-Buey L, et al. Transient elastography to assess hepatic fibrosis in primary biliary cirrhosis. Aliment Pharmacol Ther. 2008 Mar 1;27(5):441-7.
18. Zachou K, Lygoura V, Arvaniti P, et al. FibroMeter scores for the assessment of liver fibrosis in patients with autoimmune liver diseases. Ann Hepatol. 2021 May-Jun;22:100285.
19. Ehlken H, Wroblewski R, Corpechot C, et al. Validation of Transient Elastography and Comparison with Spleen Length Measurement for Staging of Fibrosis and Clinical Prognosis in Primary Sclerosing Cholangitis. PLoS One. 2016 Oct 10;11(10):e0164224.
20. Corpechot C, Gaouar F, El Naggar A, et al. Baseline values and changes in liver stiffness measured by transient elastography are associated with severity of fibrosis and outcomes of patients with primary sclerosing cholangitis. Gastroenterology. 2014 Apr;146(4):970-9; quiz e15-6.
21. Krawczyk M, Ligocka J, Ligocki M, et al. Does transient elastography correlate with liver fibrosis in patients with PSC? Laennec score-based analysis of explanted livers. Scand J Gastroenterol. 2017 Dec;52(12):1407-1412.
22. Yan Y, Xing X, Lu Q, et al. Assessment of biopsy proven liver fibrosis by two-dimensional shear wave elastography in patients with primary biliary cholangitis. Dig Liver Dis. 2020 May;52(5):555-560.
23. Zhang DK, Chen M, Liu Y, et al. Acoustic radiation force impulse elastography for non-invasive assessment of disease stage in patients with primary biliary cirrhosis: A preliminary study. Clin Radiol. 2014 Aug;69(8):836-40.
24. Park DW, Lee YJ, Chang W, et al. Diagnostic performance of a point shear wave elastography (pSWE) for hepatic fibrosis in patients with autoimmune liver disease. PLoS One. 2019 Mar 11;14(3):e0212771.
25. Friedrich-Rust M, Müller C, Winckler A, et al. Assessment of liver fibrosis and steatosis in PBC with FibroScan, MRI, MR-spectroscopy, and serum markers. J Clin Gastroenterol. 2010 Jan;44(1):58-65.
26. Friedrich-Rust M, Rosenberg W, Parkes J, et al. Comparison of ELF, FibroTest and FibroScan for the non-invasive assessment of liver fibrosis. BMC Gastroenterol. 2010 Sep 9;10:103.
27. Whiting PF, Rutjes AW, Westwood ME, et al. QUADAS-2 Group. QUADAS-2: a revised tool for the quality assessment of diagnostic accuracy studies. Ann Intern Med. 2011 Oct 18;155(8):529-36.
28. European Association for the Study of the Liver. EASL Recommendations on Treatment of Hepatitis C 2018. J Hepatol. 2018 Aug;69(2):461-511.
29. Abe T, Kuroda H, Fujiwara Y, et al. Accuracy of 2D shear wave elastography in the diagnosis of liver fibrosis in patients with chronic hepatitis C. J Clin Ultrasound. 2018 Jun;46(5):319-327
30.Gao Y, Zheng J, Liang P, et al. Liver Fibrosis with Two-dimensional US Shear-Wave Elastography in Participants with Chronic Hepatitis B: A Prospective Multicenter Study. Radiology. 2018 Nov;289(2):407-415.
31. Nahon P, Kettaneh A, Tengher-Barna I, et al. Assessment of liver fibrosis using transient elastography in patients with alcoholic liver disease. J Hepatol. 2008 Dec;49(6):1062-8.
32. Thiele M, Detlefsen S, Sevelsted Møller L, et al. Transient and 2-Dimensional Shear-Wave Elastography Provide Comparable Assessment of Alcoholic Liver Fibrosis and Cirrhosis. Gastroenterology. 2016 Jan;150(1):123-33.
33. Eddowes PJ, Sasso M, Allison M, et al. Accuracy of FibroScan Controlled Attenuation Parameter and Liver Stiffness Measurement in Assessing Steatosis and Fibrosis in Patients With Nonalcoholic Fatty Liver Disease. Gastroenterology. 2019 May;156(6):1717-1730.
34. Xiao G, Zhu S, Xiao X, et al. Comparison of laboratory tests, ultrasound, or magnetic resonance elastography to detect fibrosis in patients with nonalcoholic fatty liver disease: A meta-analysis. Hepatology. 2017 Nov;66(5):1486-1501.
